MGA MGB Mini Triumph Austin ETC (Bluetooth Programmable) w/angled cap

4 Cylinder Angled Cap Bluetooth Programmable MGA MGB Mini Triumph Austin etc

123Ignition
SKU:
Tune+ 4-A-V-G
Availability:
Usually ships within 1-3 business days
$529.95
$571.95
(You save $42.00 )
(No reviews yet)
Fixed Shipping Cost:
$19.99
Current Stock:
Adding to cart… The item has been added
Description

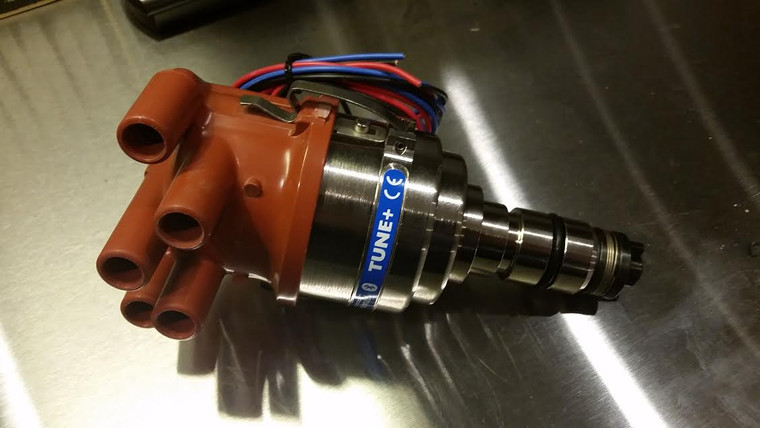

123\TUNE+-4-A-V-G BLUETOOTH - Mini w/angled cap

123gb-4-a.jpg123boschmodel-g.pngwiring-negtuneplus.pngdashboardtuneplus.jpgcurvetuneplus.jpg

for Aston Martin, Austin, Landrover, MG, Midget, Mini, Morgan, Morris, Rover and Triumph> all Lucas 4 cylinder replacements
where an angled cap is required

The 123\TUNE+-4-A-V-G replaces most 4 cyl. Lucas-distributors for engines in Great-British (hence 'GB') cars where an angled cap is required.

Please check if the distributor need a connection for a mechanical rev.counter, as a 123\TUNE+-4-R-V-G does not offer this.

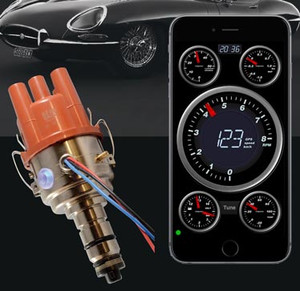

123ignition is proud to announce the first fully programmable wireless Bluetooth 4.0 ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.

Main features: REV-counter, Antitheft system by a PIN code, Bluetooth 4.0, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, etc.
SPECIFICATIONS
cylinders: 4
direction: CW/CCW
voltage: 4,0-15,0 Volts
range: 500 - 8000 rpm
temperature: -30 to 100 Celsius
coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
dwell: constant current, fully autom.
time-out: after 1 second current is switched off
spark-bal.: better than 0,5 degr. crankshaft
vacuum: vacuum advance or boost retard, max. 20 degrees crankshaft
max.advance: 45 degr. crankshaft
curves: one programmable advance curves
Programmable: By iOS or Android app via Bluetooth 4.0
Rev limiter: Programmable soft rev limiter ( max 7900 rpm ), 60% of the sparks will cut off
wiring: red = +6V or +12V, black = '-' coil, blue = ground
App for IOS: 123\Tune  version 1.5.2 (link to App Store opens in new window) requires iPhone/IPad/iPod 4+ and upp
App for Android: 123\Tune+  version 1.5.0 (link to Google Play Store opens in new window) requires Android 4.4 and up and a device with bluetooth 4


Installation manual
