EFI fuel pump and swirl pot assembly

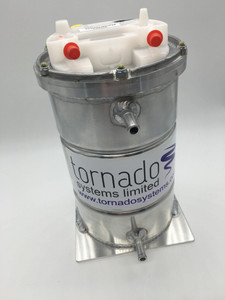

EFI Fuel pump / Swirl pot assembly
When converting a vehicle to electronic fuel injection you have to consider adding a swirl pot to prevent fuel starvation and a high pressure fuel pump to meet the requirements of the new system.
Now Tornado has a solution, both combined into one and the assembly is suitable for nearly EFI systems
The swirl pot is hand made from lightweight alloy and comes with a blank mounting base that can be drilled to suit.
Low pressure fuel from the original tank is fed into the lower side inlet, and excess fuel and vapour is fed back to the tank via the Upper, restricted outlet. The high pressure feed outlet to the fuel rail and return from the pressure regulator are neatly contained on the top of the unit along with the electrical Connection.
This is especially useful when converting a classic car to EFI as there tends to be little room available to fit a separate fuel pump and swirl pot.
The kit comes complete with a length of connecting hose that can be cut as required and ready-to-wire electrical connectors.
235mm high by 140mm diameter
Pump specifications: 75L/H and 8.5A max at 12v @ 350kpa
