Switched Porsche 911 Small 2.0 and 2.2 65-77 Re: HKZ Units and 123 Ignitions. Ok for use with 3 pin HKZ but not with the newer 6 pin

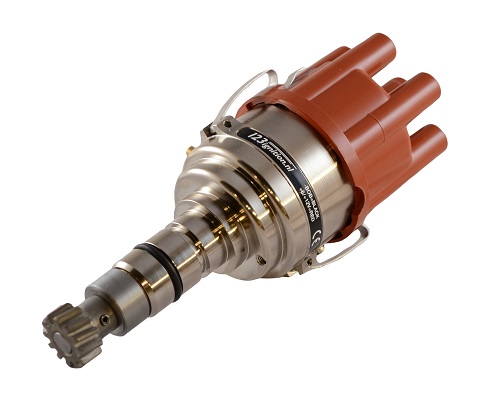

Porsche 911 2.0 and 2.2 123ignition Distributor (Pre programmed switched) Works with 3 Pin HZK not 6 pin yrs 65-77

123Ignition
SKU:
123PORSCHE911-6-R-V-SMALL Switched
Availability:
Usually ships within 1-3 business days
$489.95
$538.95
(You save $49.00 )
(No reviews yet)
Fixed Shipping Cost:
$19.99
Current Stock:
Adding to cart… The item has been added
Description

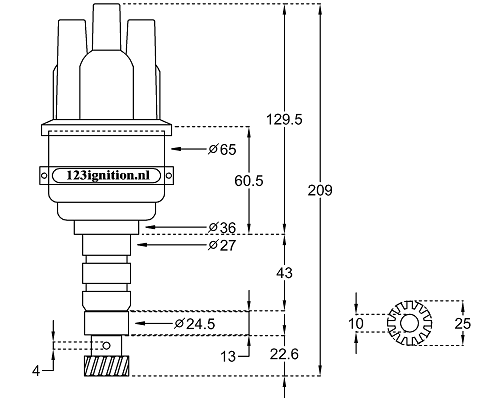

 123\PORSCHE-911-SMALL-6-R-V for 911 6 cylinder 2,0 - 2,2 L


Wiring the HKZ 3 pin to 123ignition
Terminal "A" to Pos side of coil. Neg side of coil to ground.
Red from 123 to 12v terminal "B" of HKZ
Black from 123 to Terminal "C" of HKZ and the Black/Violet of Tachometer
Blue from 123 to Ground

The 123\PORSCHE-911-SMALL-6-R-V is designed for Porsche 911 2,0L and 2,2L 6 cylinder engines.

Suitable for engines without HKZ (CDI) unit and first generation HKZ unit ( 3 wires )

Warning: Don't use the original HKZ (CDI) coil direct on the 123ignition.


The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the table below for available advance curves.
SPECIFICATIONS
cylinders: 6
direction: CW/CCW
voltage: 4,0-15,0 Volts
range: 500 - 8000 rpm
temperature: -30 to 100 Celsius
coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
dwell: constant current, fully autom.
time-out: after 1 second current is switched off
spark-bal.: better than 0,5 degr. crankshaft
vacuum: starts at 100 mmHg, ends at 10 degr. @ 300 mmHg
max.advance: 45 degr. crankshaft
wiring: red = +6V or +12V, black = '-' coil


Installation manual



Curve table data
123\PORSCHE-911-SMALL-6-R-V
 advance startsmax. advancevac. adv. startsmax. vac. adv.
curve[rpm crankshaft][rpm/degr. crankshaft][mmHg][mmHg/degr.]replacesremark
0 1000 6100 31,0 120 307 10,0 BOSCH 0 231 159 001 Porsche 911/T&L 2.0L '66-'68
1 700 6600 36,0 120 307 10,0 BOSCH 0 231 121 006 Porsche 911 2.0L '64-'65
2 800 6600 22,0 120 307 10,0 BOSCH 0 231 159 002 Porsche 911S 2.0L '66-'68
3 1000 6400 32,0 120 307 10,0 BOSCH 0 231 159 006 … 007 Porsche 911E/S 2.2L '68-'71
4 1200 6400 40,0 120 307 10,0 BOSCH 0 231 159 008 Porsche 911T 2.0/2.2L '66-'71
5 1000 6800 28,0 87 120 9,0 BOSCH 0 231 169 001 Porsche 911T&L 2.0L '68-'69 NEG.VAC!
6 1200 6000 30,0 93 140 10,0* BOSCH 0 231 169 003 … 004 … 005 Porsche 911E/T/S 2.4L '71-'72 NEG.VAC!
7 1200 6000 30,0 93 140 10,0* BOSCH 0 231 169 008 … 009 … 010 Porsche 911E/T/S 2.4L '72-'73 NEG.VAC!
8 1000 5700 25,0 73 120 10,0* BOSCH 0 231 169 011 Porsche 911 Carrera 2.7L '72-'73 NEG.VAC!
9 1200 6000 30,0 107 140 10,0* BOSCH 0 231 184 001/002/003/007 Porsche 911E/T/S 2.4L 2.7L '73-'77 NEG.VAC!
A 1400 5800 25,0 73 120 10,0* BOSCH 0 231 184 004 Porsche 911 Carrera 2.7L '73-'75 NEG.VAC!
B 1200 6000 30,0 107 140 10,0* BOSCH 0 231 184 005 … 006 Porsche 911 Carrera 3.0L '75-'77 NEG.VAC!
C 500 3400 22,0 100 180 20,0* BOSCH 0 237 301 001 … 002 Porsche 911 Turbo Carrera (USA) '75-'77 NEG.VAC!
D 1000 6100 31,0 120 307 10,0 BOSCH 0 231 159 001 Porsche 911/T&L 2.0L '66-'68
E 1000 6100 31,0 120 307 10,0 BOSCH 0 231 159 001 Porsche 911/T&L 2.0L '66-'68
F 1000 6100 31,0 120 307 10,0 BOSCH 0 231 159 001 Porsche 911/T&L 2.0L '66-'68
